Dual Port Nebulizar
Logo

HETEROMACH MEDITRONIX®

(An ISO 9001 & ISO 13485 Certified Company)

D
U
A
L

P
O
R
T

N
E
B
U
L
I
Z
E
R

ADULT / PEDIATRIC

S. No

Accessories

Qty

1.

Mask

2

2.

Silicon Tube

2

3.

Nebulizer Chamber

2

OPTIONAL ACCESSORIES​

S. No

Accessories

1.

Trolley / Stand

2.

Nebulizer Kits

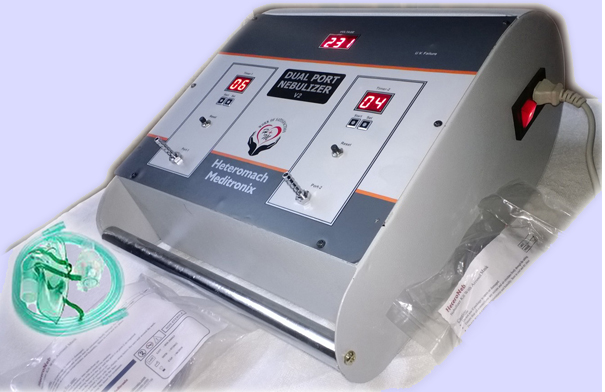

The First Dual Port Nebulizer With Ultra Violet Technology (U.V.T.)

  • Special Nebulizer for O.P.D., Hospitals & Clinics.
  • Excellent Design with Ultra Violet Technology.
  • Heavy Duty Piston Based Compressors For Each Port.
  • In Built Thermostat Fitted Compressors For Long Life.
  • Low Particle Size For Better Medication.
  • Double Stage Filteration:

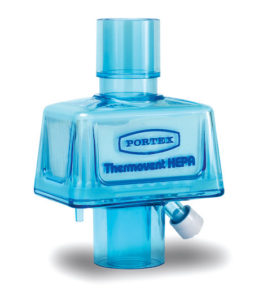

1.      HEPA Filter (Having minimum size particle removal efficiency of no less than 99.9% for 0.3 microns particles).

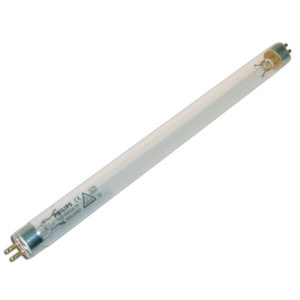

2.      Ultra Violet Filter (Having the efficiency of killing micro-organisms like bacteria etc.).

  • Time Setting Of Individual Port For Treatment (Digital).

Technical Specifications:

Against electric shock

 Internally Powered equipment

Power

220 VAC, 50 HZ

Current for each compressor

1 A

Compressor Type

Piston based compressor with in built thermostat.

Medicine Capacity (Each Port)

2 – 13 ml (cc)

Particle Size (Each Port)

0.5 – 8.0 µm

Average Nebulization rate (Each Port)

0.2 ml/min

Compressor Pressure Range (Each Port)

30-36 PSi (210-250 KPA/2.1-2.5 bar)

Operating Pressure Range (Each Port)

8-16 Psi (50-100 KPA/0.5-1 bar)

Liter flow range (Each Port)

6-8 lpm

Filters

Double Stage Filtration

·         HEPA filter

(having minimum size particle removal efficiency of no less than 99.9% for 0.3 microns particles)

·         U.V. filter
(having the efficiency of killing micro-organisms like bacteria , virus etc)

Timer

Individual Programmable OFF Timer for each port (Digital)

Operating Temp. Range

2oC – 45oC

Operating Humidity Range

10-95% RH

Safety Features

. Compressors Stop Automatically if U.V. fails
. U.V. Failure Indication with Alarm

By-Pass Switch

For Emergency use after U.V. Failure
